#include <network.hpp>

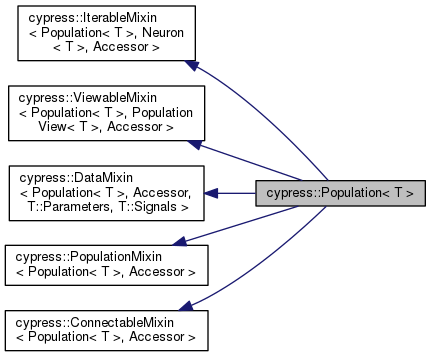

Inheritance diagram for cypress::Population< T >:

[legend]

Collaboration diagram for cypress::Population< T >:

[legend]

Public Types
using	iterator = iterator_< 1, false >

using	const_iterator = iterator_< 1, true >

using	reverse_iterator = iterator_<-1, false >

using	const_reverse_iterator = iterator_<-1, true >

Public Member Functions
	Population (const PopulationBase &population)

	Population (Network &network, size_t size, const typename T::Parameters &params=typename T::Parameters(), const typename T::Signals &signals=typename T::Signals(), const char *name="")

	Population (Network &network, size_t size, const typename T::Parameters &params, const char *name)

	operator PopulationBase () const

	operator const PopulationBase & () const

	operator PopulationBase & ()

const NeuronType &	type () const

Network	network () const

PopulationIndex	pid () const

Neuron< T >	operator[] (NeuronIndex i)

const Neuron< T >	operator[] (NeuronIndex i) const

Neuron< T >	operator() (NeuronIndex i)

const Neuron< T >	operator() (NeuronIndex i) const

size_t	size ()

iterator	begin ()

const_iterator	begin () const

iterator	end ()

const_iterator	end () const

reverse_iterator	rbegin ()

const_reverse_iterator	rbegin () const

reverse_iterator	rend ()

const_reverse_iterator	rend () const

const_iterator	cbegin () const

const_iterator	cend () const

const_reverse_iterator	crbegin () const

const_reverse_iterator	crend () const

const PopulationView< T >	range (NeuronIndex begin, NeuronIndex end) const

PopulationView< T >	range (NeuronIndex begin, NeuronIndex end)

const PopulationView< T >	operator() (NeuronIndex begin, NeuronIndex end) const

PopulationView< T >	operator() (NeuronIndex begin, NeuronIndex end)

bool	operator== (const Other &o) const

bool	operator!= (const Other &o) const

bool	operator< (const Other &o) const

bool	operator<= (const Other &o) const

bool	operator> (const Other &o) const

bool	operator>= (const Other &o) const

const T::Parameters	parameters () const

T::Parameters	parameters ()

const T::Signals	signals () const

T::Signals	signals ()

const std::string &	name () const

Population< T > &	name (const std::string &name)

size_t	size () const

bool	homogeneous_parameters () const

bool	homogeneous_record () const

bool	homogeneous_data () const

Population< T > &	connect_to (TargetIterator tar_begin, TargetIterator tar_end, std::unique_ptr< Connector > connector, const char *name="")

Population< T > &	connect_to (const Target &tar, std::unique_ptr< Connector > connector, const char *name="")

Detailed Description

template<typename T>
class cypress::Population< T >

The Population class represents a set of neurons with the given type.

Template Parameters

T	is the type of the neurons within the population.

Member Typedef Documentation

using cypress::IterableMixin< Population< T > , Neuron< T > , Accessor >::const_iterator = iterator_<1, true>

inherited

using cypress::IterableMixin< Population< T > , Neuron< T > , Accessor >::const_reverse_iterator = iterator_<-1, true>

inherited

using cypress::IterableMixin< Population< T > , Neuron< T > , Accessor >::iterator = iterator_<1, false>

inherited

using cypress::IterableMixin< Population< T > , Neuron< T > , Accessor >::reverse_iterator = iterator_<-1, false>

inherited

Constructor & Destructor Documentation

template<typename T>

cypress::Population< T >::Population ( const PopulationBase & population )

inlineexplicit

Creates a population as a handle pointing at an already existing population object.

template<typename T >

cypress::Population< T >::Population	(	Network &	network,
		size_t	size,
		const typename T::Parameters &	params = `typename T::Parameters()`,
		const typename T::Signals &	signals = `typename T::Signals()`,
		const char *	name = `""`
	)

inline

Creates a new population in the given network.

Parameters

network	is the network in which the population should be instantiated.
size	is the number of neurons in the population.
params	is a vector of parameters with one entry for each neuron in the population. Pass an empty vector if the default parameters should be used. Set a single argument to share the same parameters between all neurons.
signals	describes from which signals should be recorded.
name	is the (optional) name of the population.

template<typename T>

cypress::Population< T >::Population	(	Network &	network,
		size_t	size,
		const typename T::Parameters &	params,
		const char *	name
	)

inline

Creates a new population in the given network.

Parameters

network	is the network in which the population should be instantiated.
size	is the number of neurons in the population.
params	is a vector of parameters with one entry for each neuron in the population. Pass an empty vector if the default parameters should be used. Set a single argument to share the same parameters between all neurons.
signals	describes from which signals should be recorded.
name	is the (optional) name of the population.

Member Function Documentation

iterator cypress::IterableMixin< Population< T > , Neuron< T > , Accessor >::begin ( )

inlineinherited

Returns an iterator at the first neuron in the population. For neurons, returns an iterator pointing at the neuron itself.

const_iterator cypress::IterableMixin< Population< T > , Neuron< T > , Accessor >::begin ( ) const

inlineinherited

const_iterator cypress::IterableMixin< Population< T > , Neuron< T > , Accessor >::cbegin ( ) const

inlineinherited

const_iterator cypress::IterableMixin< Population< T > , Neuron< T > , Accessor >::cend ( ) const

inlineinherited

Population< T > & cypress::ConnectableMixin< Population< T > , Accessor >::connect_to	(	TargetIterator	tar_begin,
		TargetIterator	tar_end,
		std::unique_ptr< Connector >	connector,
		const char *	name = `""`
	)

inlineinherited

Connects all neurons in this Population, PopulationView or Neuron with a range of neurons indicated by the given iterators.

Parameters

tar_begin	is an iterator pointing at the first neuron in the target population that should be connected.
tar_end	is an iterator pointing at the last neuron in the target population that should be connected.
connector	is the object establishing the actual connections.

Returns: a reference at this object for function chaining.

Population< T > & cypress::ConnectableMixin< Population< T > , Accessor >::connect_to	(	const Target &	tar,
		std::unique_ptr< Connector >	connector,
		const char *	name = `""`
	)

inlineinherited

Connects all neurons in this Population, PopulationView or Neuron with the given target, which may be a Population, PopulationView or a single neuron.

Parameters

tar	is the object this object should be connected with.
connector	is the object establishing the actual connections.

Returns: a reference at this object for function chaining.

const_reverse_iterator cypress::IterableMixin< Population< T > , Neuron< T > , Accessor >::crbegin ( ) const

inlineinherited

const_reverse_iterator cypress::IterableMixin< Population< T > , Neuron< T > , Accessor >::crend ( ) const

inlineinherited

iterator cypress::IterableMixin< Population< T > , Neuron< T > , Accessor >::end ( )

inlineinherited

Returns an iterator at the last-plus-one neuron in the population.

const_iterator cypress::IterableMixin< Population< T > , Neuron< T > , Accessor >::end ( ) const

inlineinherited

bool cypress::PopulationMixin< Population< T > , Accessor >::homogeneous_data ( ) const

inlineinherited

Returns true if the population possesses homogeneous data.

bool cypress::PopulationMixin< Population< T > , Accessor >::homogeneous_parameters ( ) const

inlineinherited

Returns true if the population possesses homogeneous neuron parameters.

bool cypress::PopulationMixin< Population< T > , Accessor >::homogeneous_record ( ) const

inlineinherited

Returns true if the population possesses homogeneous record flags.

const std::string& cypress::PopulationMixin< Population< T > , Accessor >::name ( ) const

inlineinherited

Returns the name of the population.

Population< T > & cypress::PopulationMixin< Population< T > , Accessor >::name ( const std::string & name )

inlineinherited

Sets the name of the population and returns a reference at the population object.

template<typename T >

Network cypress::Population< T >::network ( ) const

inline

Returns a handle pointing at the network this population is located in.

Returns: a Network object representing the network this population is located in.

template<typename T>

cypress::Population< T >::operator const PopulationBase & ( ) const

inline

template<typename T>

cypress::Population< T >::operator PopulationBase ( ) const

inline

This class can be implicitly converted to PopulationBase, loosing the neuron type information.

template<typename T>

cypress::Population< T >::operator PopulationBase & ( )

inline

bool cypress::DataMixin< Population< T > , Accessor, T::Parameters , T::Signals >::operator!= ( const Other & o ) const

inlineinherited

const PopulationView< T > cypress::ViewableMixin< Population< T > , PopulationView< T > , Accessor >::operator()	(	NeuronIndex	begin,
		NeuronIndex	end
	)		const

inlineinherited

Returns a constant View object representing a range of neurons relative to this object.

Parameters

begin	is the index of the first neuron in the resulting view, relative to the first neuron in this object.
end	is the index of the last-plus-one neuron in the resulting view, relative to the first neuron in this object.

Returns: a new view representing only the given range of neurons.

PopulationView< T > cypress::ViewableMixin< Population< T > , PopulationView< T > , Accessor >::operator()	(	NeuronIndex	begin,
		NeuronIndex	end
	)

inlineinherited

Returns a View object representing a range of neurons relative to this object.

Parameters

begin	is the index of the first neuron in the resulting view, relative to the first neuron in this object.
end	is the index of the last-plus-one neuron in the resulting view, relative to the first neuron in this object.

Returns: a new view representing only the given range of neurons.

Neuron< T > cypress::IterableMixin< Population< T > , Neuron< T > , Accessor >::operator() ( NeuronIndex i )

inlineinherited

Returns a reference at the i-th neuron in the Population or PopulationView. For neurons, only the index zero is allowed, providing access at the neuron itself.

const Neuron< T > cypress::IterableMixin< Population< T > , Neuron< T > , Accessor >::operator() ( NeuronIndex i ) const

inlineinherited

Returns a const-reference at the i-th neuron. For neurons, only the index zero is allowed, providing access at the neuron itself.

bool cypress::DataMixin< Population< T > , Accessor, T::Parameters , T::Signals >::operator< ( const Other & o ) const

inlineinherited

bool cypress::DataMixin< Population< T > , Accessor, T::Parameters , T::Signals >::operator<= ( const Other & o ) const

inlineinherited

bool cypress::DataMixin< Population< T > , Accessor, T::Parameters , T::Signals >::operator== ( const Other & o ) const

inlineinherited

bool cypress::DataMixin< Population< T > , Accessor, T::Parameters , T::Signals >::operator> ( const Other & o ) const

inlineinherited

bool cypress::DataMixin< Population< T > , Accessor, T::Parameters , T::Signals >::operator>= ( const Other & o ) const

inlineinherited

Neuron< T > cypress::IterableMixin< Population< T > , Neuron< T > , Accessor >::operator[] ( NeuronIndex i )

inlineinherited

Returns a reference at the i-th neuron in the Population or PopulationView. For neurons, only the index zero is allowed, providing access at the neuron itself.

const Neuron< T > cypress::IterableMixin< Population< T > , Neuron< T > , Accessor >::operator[] ( NeuronIndex i ) const

inlineinherited

Returns a const-reference at the i-th neuron. For neurons, only the index zero is allowed, providing access at the neuron itself.

const T::Parameters cypress::DataMixin< Population< T > , Accessor, T::Parameters , T::Signals >::parameters ( ) const

inlineinherited

Returns an object which can be used for reading the parameters of the neurons represented by this object. Note that read access may be constrained when the parameters in the underlying neurons do not possess the same parameters.

T::Parameters cypress::DataMixin< Population< T > , Accessor, T::Parameters , T::Signals >::parameters ( )

inlineinherited

Returns an object which can be used for setting the parameters of the neurons. Note that read access may be constrained when the parameters in the underlying neurons do not possess the same parameters.

template<typename T>

PopulationIndex cypress::Population< T >::pid ( ) const

inline

Returns the population index of this population.

Returns: the population index of this population.

const PopulationView< T > cypress::ViewableMixin< Population< T > , PopulationView< T > , Accessor >::range	(	NeuronIndex	begin,
		NeuronIndex	end
	)		const

inlineinherited

Returns a constant View object representing a range of neurons relative to this object.

Parameters

begin	is the index of the first neuron in the resulting view, relative to the first neuron in this object.
end	is the index of the last-plus-one neuron in the resulting view, relative to the first neuron in this object.

Returns: a new view representing only the given range of neurons.

PopulationView< T > cypress::ViewableMixin< Population< T > , PopulationView< T > , Accessor >::range	(	NeuronIndex	begin,
		NeuronIndex	end
	)

inlineinherited

Returns a View object representing a range of neurons relative to this object.

Parameters

begin	is the index of the first neuron in the resulting view, relative to the first neuron in this object.
end	is the index of the last-plus-one neuron in the resulting view, relative to the first neuron in this object.

Returns: a new view representing only the given range of neurons.

reverse_iterator cypress::IterableMixin< Population< T > , Neuron< T > , Accessor >::rbegin ( )

inlineinherited

const_reverse_iterator cypress::IterableMixin< Population< T > , Neuron< T > , Accessor >::rbegin ( ) const

inlineinherited

reverse_iterator cypress::IterableMixin< Population< T > , Neuron< T > , Accessor >::rend ( )

inlineinherited

const_reverse_iterator cypress::IterableMixin< Population< T > , Neuron< T > , Accessor >::rend ( ) const

inlineinherited

const T::Signals cypress::DataMixin< Population< T > , Accessor, T::Parameters , T::Signals >::signals ( ) const

inlineinherited

Returns an object which can be used for reading the record flags and the recorded data.

T::Signals cypress::DataMixin< Population< T > , Accessor, T::Parameters , T::Signals >::signals ( )

inlineinherited

Returns an object which can be used for reading and writing the record flags and the recorded data.

size_t cypress::PopulationMixin< Population< T > , Accessor >::size ( ) const

inlineinherited

Returns the number of neurons in the population.

size_t cypress::IterableMixin< Population< T > , Neuron< T > , Accessor >::size ( )

inlineinherited

Returns the size of the population or population view. For single neurons the size is always one.

template<typename T>

const NeuronType& cypress::Population< T >::type ( ) const

inline

Returns the type of the population.

Returns: a reference at the neuron type descriptor.

The documentation for this class was generated from the following file:

cypress/core/network.hpp

Public Types

Public Member Functions

Detailed Description

template<typename T> class cypress::Population< T >

Member Typedef Documentation

Constructor & Destructor Documentation

Member Function Documentation

template<typename T>
class cypress::Population< T >
